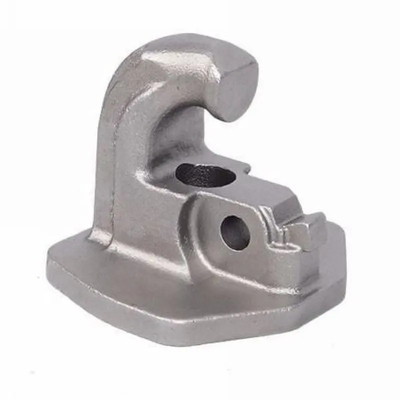

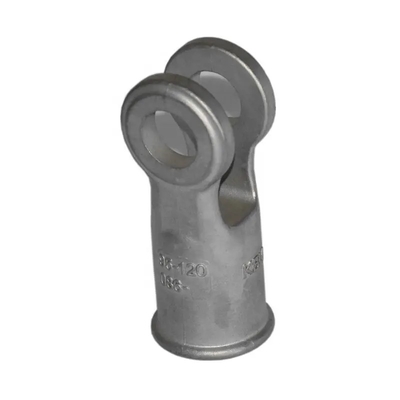

ASTM 1045 Lost Wax Carbon Steel Investment Casting

Datos del producto:

Lugar de origen:	China continental
Nombre de la marca:	NC9821
Certificación:	ISO9001,CE,SGS
Número de modelo:	9821

Pago y Envío Términos:

Cantidad de orden mínima:	100 piezas
Precio:	Can talk
Detalles de empaquetado:	caja de madera
Tiempo de entrega:	30 días
Condiciones de pago:	T/T, L/C
Capacidad de la fuente:	60,000-80,000 piezas al mes

Contacto

Descripción detallada del producto

El material:	Acero de carbono	Proceso:	Bastidor de inversión de la precisión
Tolerancia de lanzamiento:	CT5-CT7	Tratamiento de la superficie:	Revestimiento en polvo, pintura, zincado/niquelado, fosfatado, anodizado
Aplicación:	Partes de maquinaria	Producción de equipos:	Disponible

ASTM 1045 Lost Wax Carbon Steel Investment Casting

Product Details

Raw Material	Ductile iron, ADI, grey iron, carbon steel, alloy steel, stainless steel
Standard	ISO, EN, DIN, AISI, ASTM, JIS, GB
Casting Process	Green sand casting, resin sand casting, lost wax steel casting and silicon sol casting
Tolerance	ISO8062 CT5-CT9
Roughness	Ra3.2-Ra12.5
CNC Machines	12 sets of MC and 20 sets of CNC lathes
Machining Tolerance	0.01mm
Quality Control	The first sample checking, process monitoring and final quality checking
Finish	Phosphating, primer painting, anti-rust oil, powder coating, galvanized zinc coating, electro polishing and shot blasting
Certificate	ISO9001-2015, ISO14001-2015
Service	OEM/ODM offered

About Us

We are producing many kinds of casting parts, including green sand casting, resin sand casting, lost wax steel casting and silicon sol casting.

Raw materials which we could cast:

Grey iron, ductile iron, ADI, carbon steel, alloy steel, aluminium and stainless steel.

Production Process

Silica sol investment casting and water glass are the two primary investment casting methods now days. The main differences are the surface roughness and cost of casting. Water glass method dewaxes into the high-temperature water, and the ceramic mold is made of water glass quartz sand. Silica sol method dewaxes into the flash fire, and silica sol zircon sand makes the ceramic mold. Silica sol method costs more but has the better surface than water glass method.

Advantages:

1. High dimensional accuracy,good surface and quality
2. Better corrosion resistance

3. Less failure rate

Silica Sol Investment Casting production line:

ASTM 1045 Lost Wax Carbon Steel Investment Casting 0

Quality Control

ASTM 1045 Lost Wax Carbon Steel Investment Casting 1

FAQ

1.Can we supply the sample ?
Yes,samples can be provided with sample's charge and courier fee by the buyer's side

2.Can we accept customize?
Yes,we can.We can manufacture as customer's requirement.You can send the CAD or drawing to us.

3.Quality problem?

According to the standard for production.And the products must pass the quality inspection department.We also accept Third Part Inspection.

4.Delivery time?
Prompt delivery for standard size,or under the contract.
